75x75x30mm_YB7530_DC Cooling Blower Fan
+
  • 75x75x30mm_YB7530_DC Cooling Blower Fan
★ Brand: QIHDA
★ Model: YB7530
★ Size: 75x75x30mm
★ Certification: RoHS, CE, UL
★ Frame material: PBT UL94-V0
★ Rated voltage: DC12~24V
★ Power: 2.16~6.48W
★ Operating temperature: -10℃~+70℃
★ Speed: 2500~4200RPM
★ Air Flow: 7.37~11.74CFM
★ Static Pressure: 7.54~24.74mmH2O
★ Noise: 33.2~45.2dBA
★ Life: 30000~50000h
★ Weight: 76g
★ Bearing system:Sleeve/Ball

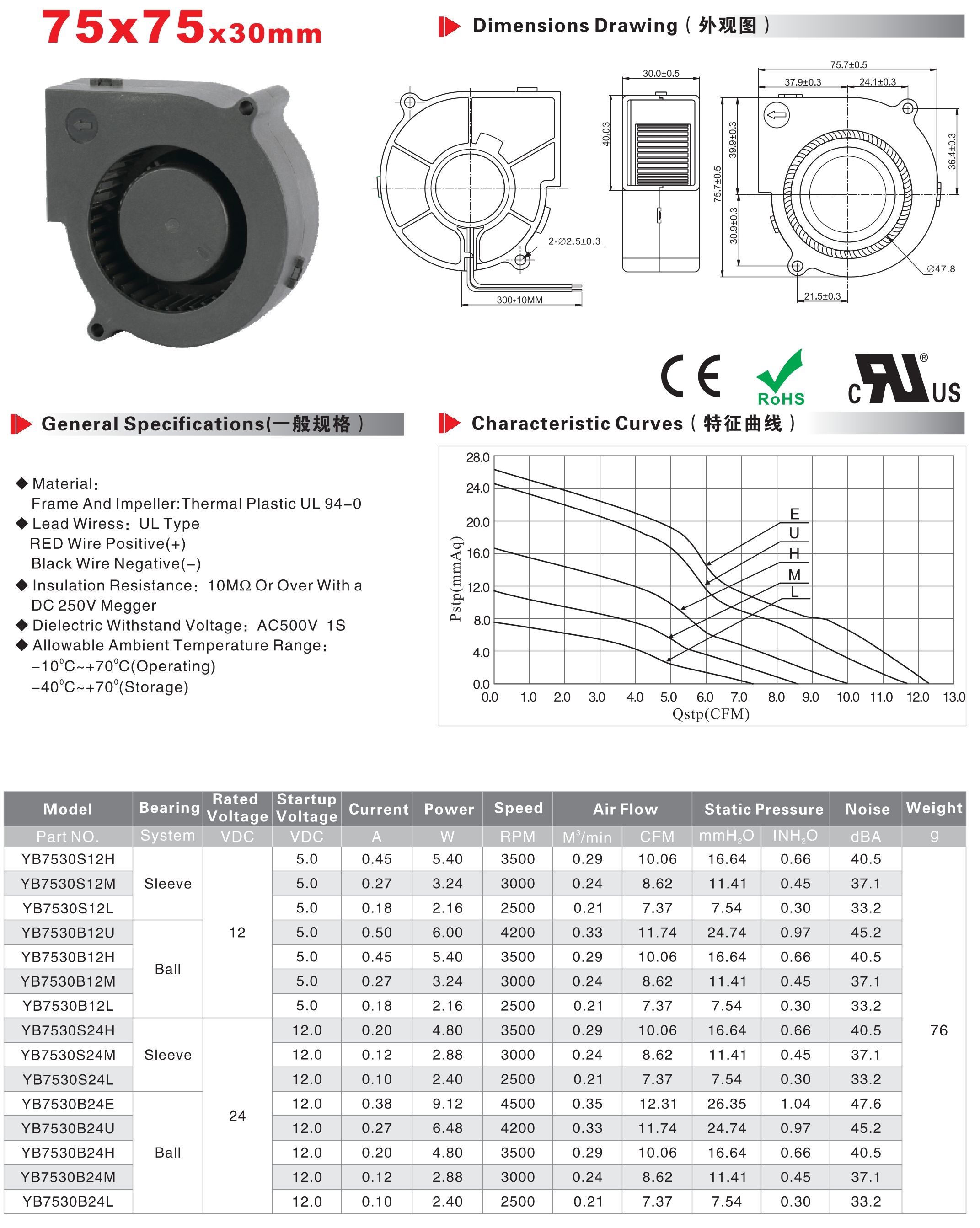

General  Specifications





















  • ✭Material: Frame and impeller: Thermal plastic UL94-V
  • ✭Lead wires: UL type red wire positive(+) / black wire negative(-).
  • ✭Insulation Resistance: 10MΩ or over with a DC 250V megger.
  • ✭Dielectric Withstand Voltage: AC500V 1S
  • ✭Allowable ambient temperature range:
    -10℃~+70℃(Operating temperature)
    -40℃~+70℃(Storage temperature)





Keywords

Why choose us ？

One-stop product solution

Specializing in the production of AC/DC/EC cooling fans, a full range of products, one-stop shopping, you can save 20% of the purchase cost

Strong strength, professional manufacturers

The registered trademark is yoy, qihengda has passed CE, ROHS, UL and other safety regulations certification

Large-scale production, high production efficiency

Qihengda has a team of more than 100 people, which can realize shift production and assembly line operation, shorten the production cycle and ensure delivery

图片名称
75x75x30mm_YB7530_DC Cooling Blower Fan
+
  • 75x75x30mm_YB7530_DC Cooling Blower Fan

75x75x30mm_YB7530_DC Cooling Blower Fan

General Specifications ✭Material: Frame and impeller: Thermal plastic UL94-V ✭Lead wires: UL type red wire positive(+) / black wire negative(-). ✭Insulation Resistance: 10MΩ or over with a DC 250V megger. ✭Dielectric Withstand Voltage: AC500V 1S ✭Allowable ambient temperature range: -10℃~+70℃(Operating temperature) -40℃~+70℃(Storage temperature)
