★ Brand: QIHDA

★ Model: YB6025

★ Size: 60x60x25mm

★ Certification: RoHS, CE, UL

★ Frame material: PBT UL94-V0

★ Rated voltage: DC12~24V

★ Power: 2.16~4.8W

★ Operating temperature: -10℃~+70℃

★ Speed: 3200~4500RPM

★ Air Flow: 5.38~7.55CFM

★ Static Pressure:6.78~13.4mmH₂O

★ Noise: 33.8~41.4dBA

★ Life: 30000h

★ Weight: 45g

★ Bearing system:Hydraulic/Ball

General Specifications

✭Material: Frame and impeller: Thermal plastic UL94-V
✭Lead wires: UL type red wire positive(+) / black wire negative(-).
✭Insulation Resistance: 10MΩ or over with a DC 250V megger.
✭Dielectric Withstand Voltage: AC500V 1S
✭Allowable ambient temperature range:
-10℃~+70℃(Operating temperature)
-40℃~+70℃(Storage temperature)

Keywords

Why choose us ？

One-stop product solution

Specializing in the production of AC/DC/EC cooling fans, a full range of products, one-stop shopping, you can save 20% of the purchase cost

Strong strength, professional manufacturers

The registered trademark is yoy, qihengda has passed CE, ROHS, UL and other safety regulations certification

Large-scale production, high production efficiency

Qihengda has a team of more than 100 people, which can realize shift production and assembly line operation, shorten the production cycle and ensure delivery

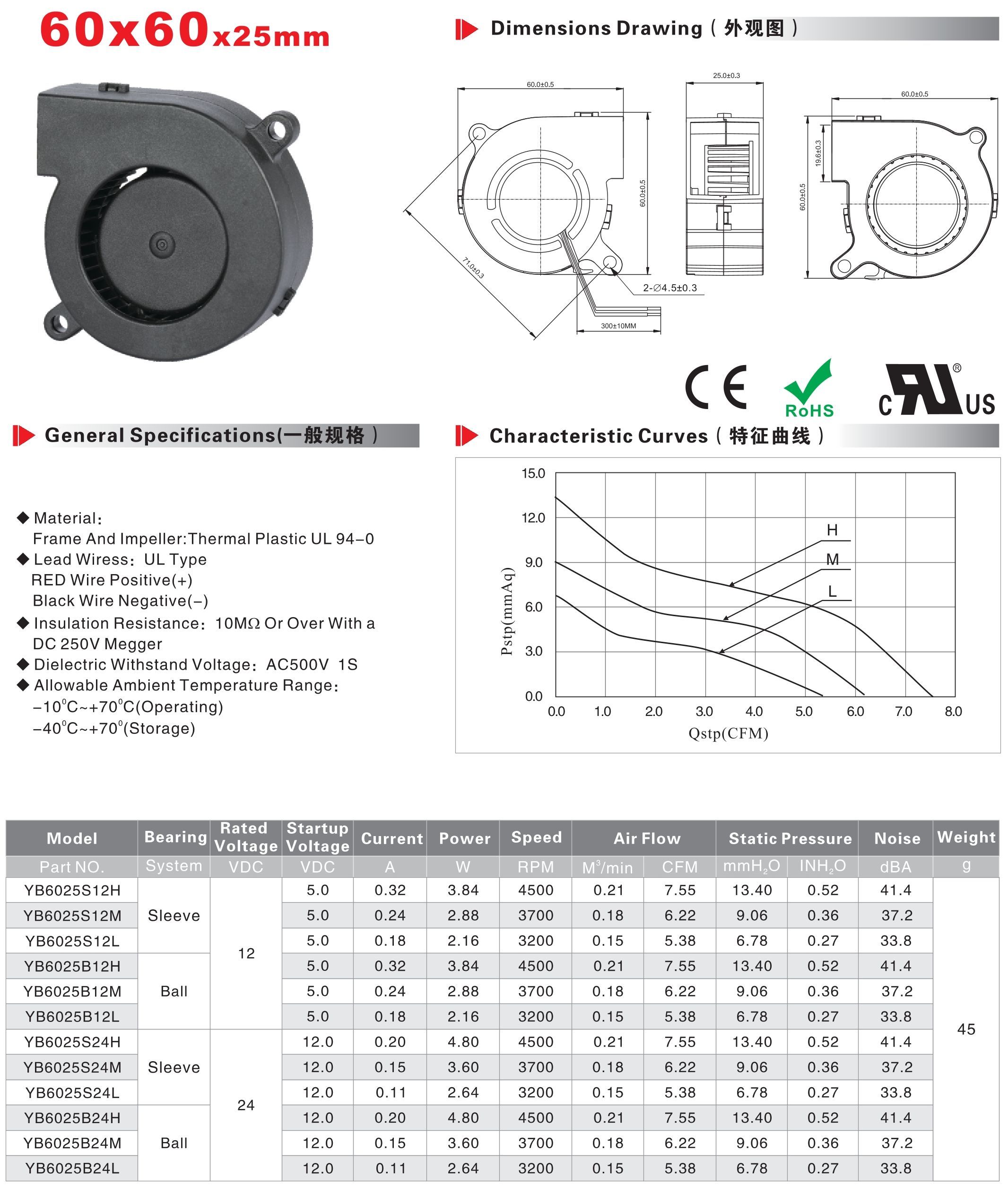

60x60x25mm YB6025 DC Cooling Fan

General Specifications ✭Material: Frame and impeller: Thermal plastic UL94-V ✭Lead wires: UL type red wire positive(+) / black wire negative(-). ✭Insulation Resistance: 10MΩ or over with a DC 250V megger. ✭Dielectric Withstand Voltage: AC500V 1S ✭Allowable ambient temperature range: -10℃~+70℃(Operating temperature) -40℃~+70℃(Storage temperature)
