★ Brand: QIHDA

★ Model: YB5020

★ Size: 50x50x20mm

★ Certification: RoHS, CE, UL

★ Frame material: PBT UL94-V0

★ Rated voltage: DC5~24V

★ Power: 0.75~3.6W

★ Operating temperature: -10℃~+70℃

★ Speed: 3500~5500RPM

★ Air Flow: 3.766.02CFM

★ Static Pressure: 9.23~22.41mmH₂O

★ Noise: 30.4~39.2dBA

★ Life: 30000~50000h

★ Weight: 33g

★ Bearing system:Hydraulic/Ball

General Specifications

✭Material：Frame and impeller:Thermal plastic UL94-V
✭Lead wires：UL type red wire positive(+) / black wire negative(-).
✭Insulation Resistance：10MΩ or over with a DC 250V megger.
✭Dielectric Withstand Voltage：AC500V 1S
✭Allowable ambient temperature range:
-10℃~+70℃(Operating temperature)
-40℃~+70℃(Storage temperature)

Keywords

Why choose us ？

One-stop product solution

Specializing in the production of AC/DC/EC cooling fans, a full range of products, one-stop shopping, you can save 20% of the purchase cost

Strong strength, professional manufacturers

The registered trademark is yoy, qihengda has passed CE, ROHS, UL and other safety regulations certification

Large-scale production, high production efficiency

Qihengda has a team of more than 100 people, which can realize shift production and assembly line operation, shorten the production cycle and ensure delivery

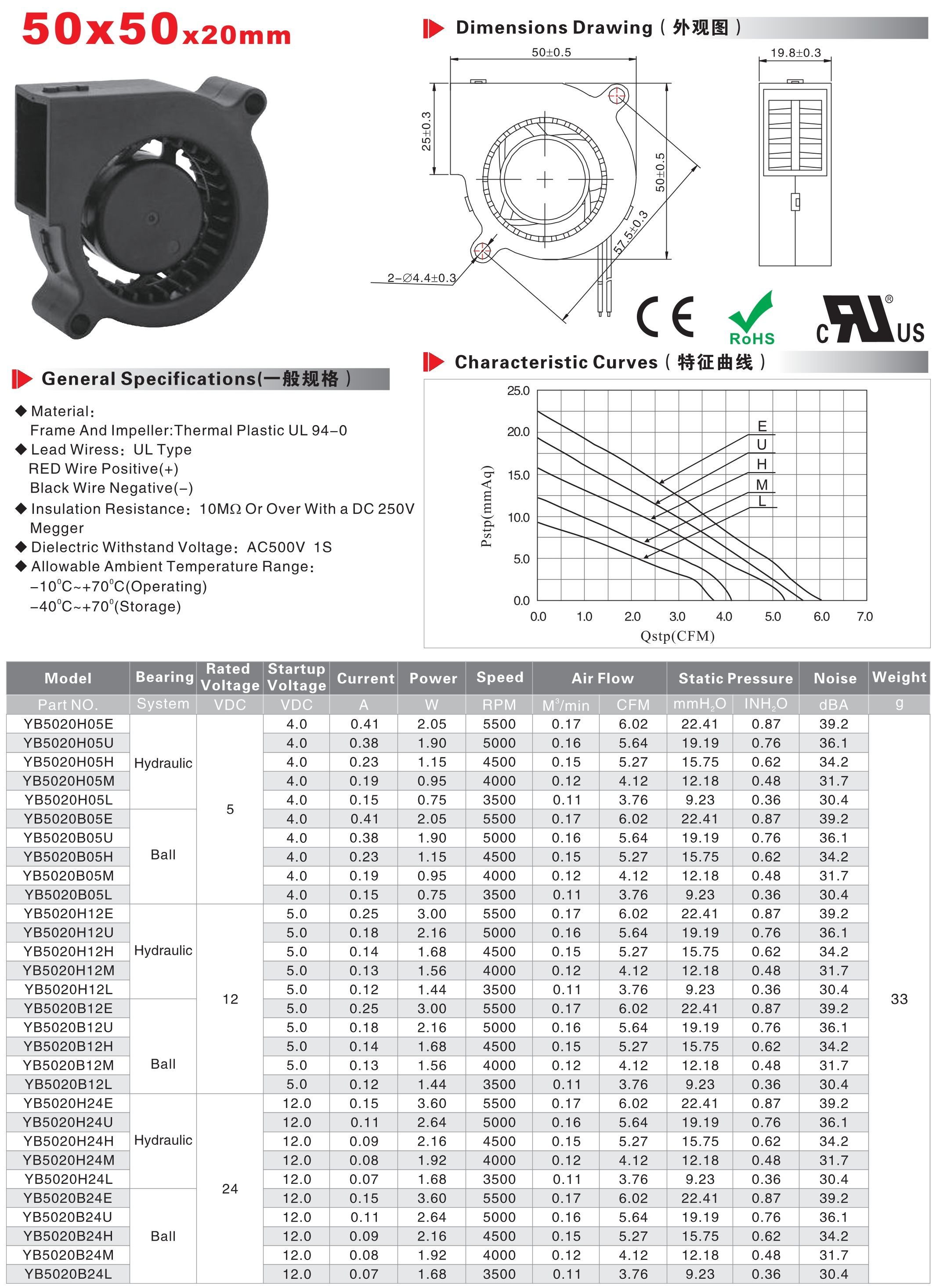

50x50x20mm_YB5020_DC Cooling Blower Fan

General Specifications ✭Material：Frame and impeller:Thermal plastic UL94-V ✭Lead wires：UL type red wire positive(+) / black wire negative(-). ✭Insulation Resistance：10MΩ or over with a DC 250V megger. ✭Dielectric Withstand Voltage：AC500V 1S ✭Allowable ambient temperature range: -10℃~+70℃(Operating temperature) -40℃~+70℃(Storage temperature)
