172x150x51mm_YA17251_AC Cooling Fan
+
  • 172x150x51mm_YA17251_AC Cooling Fan
★ Brand: QIHDA
★ Model: YA17251
★ Size: 172x150x51mm
★ Certification: RoHS, CE, UL
★ Frame material:AL/PBT UL94-V0
★ Rated voltage: AC110, 220V
★ Rated power:
★ Operating temperature: -10℃~+70℃
★ Speed: 2000~2800RPM
★ Air Flow: 145~190CFM
★ Static Pressure: 8.9~16.5mmH2O2O
★ Noise: 46~61dBA
★ Life: 30000~50000h
★ Weight:
★ Bearing system:Sleeve/Ball

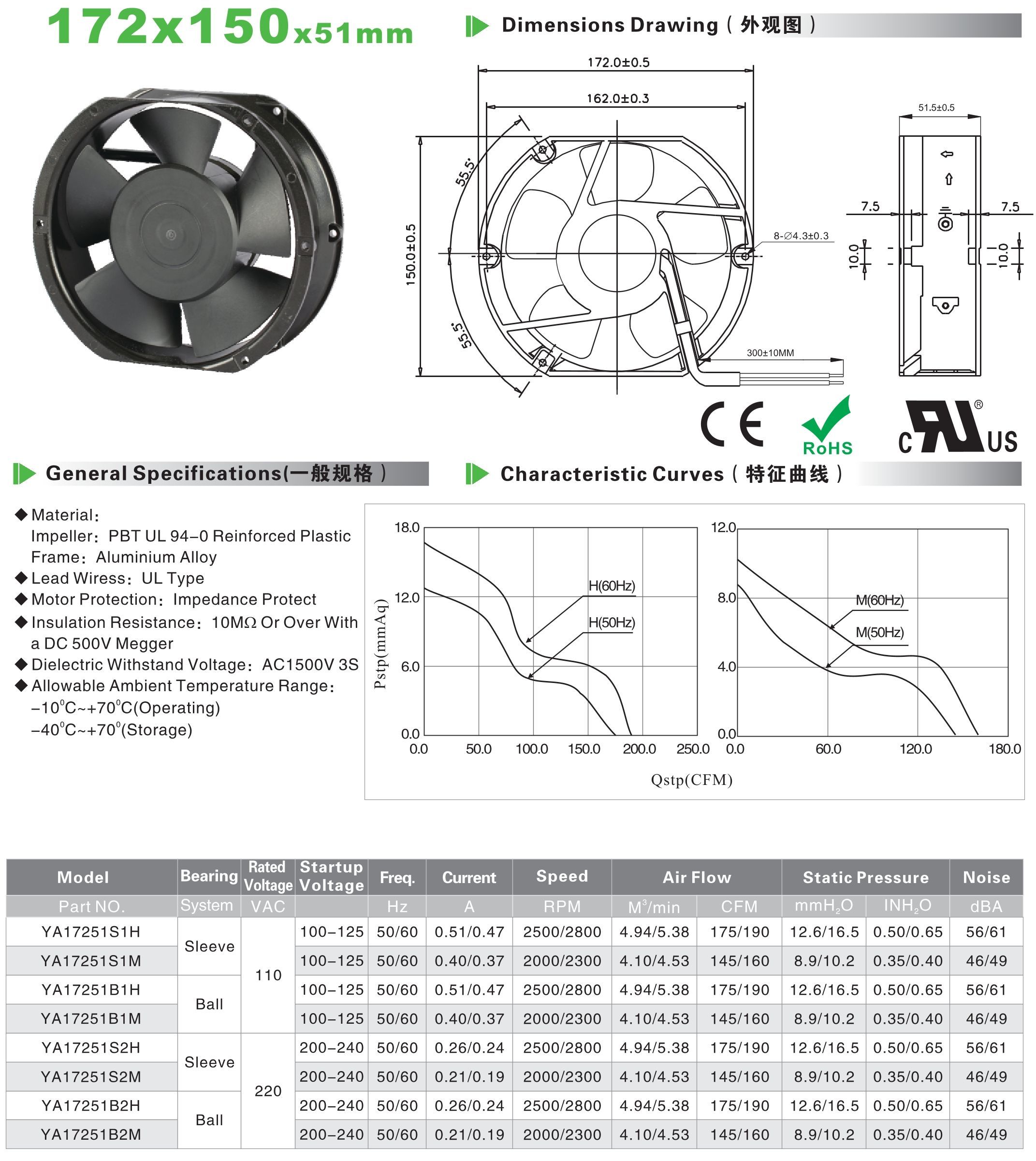

General Specifications











General  Specifications





















  • ✭Material:Impeller: Thermal plastic UL94-V
  • ✭Frame: Aluminium Alloy
  • ✭Lead wires: UL type
  • ✭Motor Protection: Impedance Protect
  • ✭Insulation Resistance: 10MΩ or over with a DC 500V megger.
  • ✭Dielectric Withstand Voltage: AC1500V 3S
  • ✭Allowable ambient temperature range:
    -10℃~+70℃(Operating temperature)
    -40℃~+70℃(Storage temperature)



Keywords

Why choose us ？

One-stop product solution

Specializing in the production of AC/DC/EC cooling fans, a full range of products, one-stop shopping, you can save 20% of the purchase cost

Strong strength, professional manufacturers

The registered trademark is yoy, qihengda has passed CE, ROHS, UL and other safety regulations certification

Large-scale production, high production efficiency

Qihengda has a team of more than 100 people, which can realize shift production and assembly line operation, shorten the production cycle and ensure delivery

图片名称
172x150x51mm_YA17251_AC Cooling Fan
+
  • 172x150x51mm_YA17251_AC Cooling Fan

172x150x51mm_YA17251_AC Cooling Fan

General Specifications ✭Material:Impeller: Thermal plastic UL94-V ✭Frame: Aluminium Alloy ✭Lead wires: UL type ✭Motor Protection: Impedance Protect ✭Insulation Resistance: 10MΩ or over with a DC 500V megger. ✭Dielectric Withstand Voltage: AC1500V 3S ✭Allowable ambient temperature range: -10℃~+70℃(Operating temperature) -40℃~+70℃(Storage temperature)
